Leica Summicron-M 35mm1:2 ASPH
Ư¡ 35mm ´Ü·»Áî
Á¶¸®°³ f/2 ~ 16
ÃÖ´Ü ÃÊÁ¡°Å¸® 70cm
ÇÊÅÍ »çÀÌÁî 39mm
ƯÀÌ»çÇ× MF ·»Áî

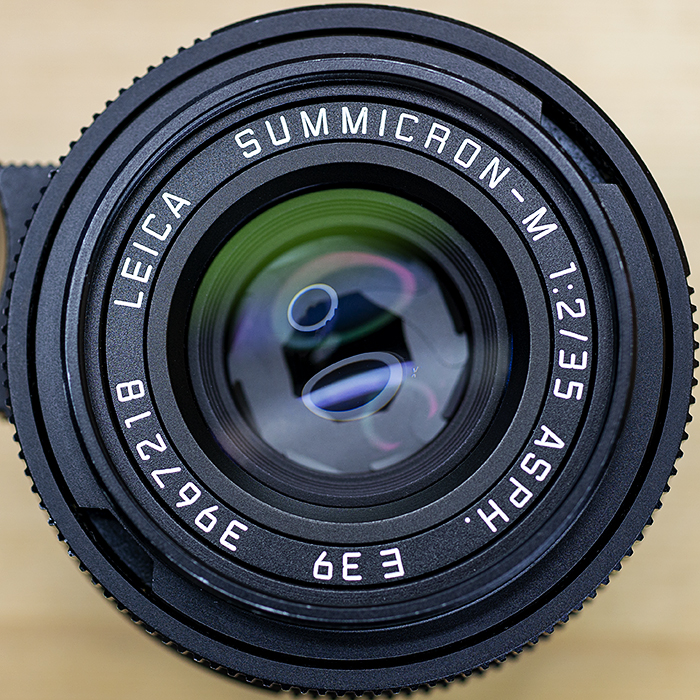

Leica Summicron-M 35mm 1:2 ASPH
Leica Order No. – 11879-black – 11882-silver – 11608-silver (S) – 11609-titan – 11611-black – 11616-LHSAchrom – 11696-gray – 11619-chrome (S) . LLC – 155
Production era – 1997-Current – black chrome edition of 500 in 2015 (shown w/ hood)
Variants Black, silver, S-silver, titanium and hammertone gray for the Leica Historical Society of America (LHSA)
Lens mount – Leica M quick-change bayonet (Screw-mount in limited edition – see Forum discussion [1] [2] [3] below)
Number of lenses/groups – 7 / 5
Focusing range – 0.7 m / 2.3 ft < ¡Ä
Aperture /type – f/2 – f/16 – Setting/Function Preset, with click-stops, half values available / 8-blade manual diaphragm
Smallest object field /Largest reproduction ratio – 419 mm x 627 mm / 1:17.5
Angle of view (diagonal, horizontal, vertical) – 63¡Æ, 54¡Æ, 38¡Æ
Position of entrance pupil – 10 mm (related to the first lens surface in light direction)
Scales – Combined meter/feet graduation
Filter mount – Internal thread for screw-in filters size E39
Accessories – Lens hood 12524, 12526, 12504 or 12528
Viewfinder – Camera viewfinder
Materials – Silver or titanium lacquered alloy / Black anodized aluminum / Chrome plated brass
Focal length – 35.3 mm / 1.4 in
Length to bayonet flange – 34.5 mm / 1.4 in
Largest diameter – 53 mm /2.1 in
Weight – approx. 255 g /9 oz alloy – 340 g /12 oz chrome plated – 225 g /7.9 oz black chrome
Inscription – LEICA SUMMICRON-M ASPH. 1:2/35 E 39 XXXXXXX

12526
